Controlled Humidity Temperature Controlled Walk in Cooling Chamber
♦Application for Controlled Humidity Temperature Controlled Walk in Cooling Chamber
LIB Industry designs and manufactures walk in chambers. These walk-in chambers are in piece assembling structure, which enables on-site installation and commissioning. With large volume, the chamber can be used to simulate the single or complicated environmental factors in the atmosphere such as temperature, humidity, salt fog, illumination, dust, rain and vibration.
The products can be used to analyze and evaluate the property and performance of the batch elements and parts or machine sets under simulated conditions, and can also be used in experiment and production.
♦Advantages for Controlled Humidity Temperature Controlled Walk in Cooling Chamber
1. Walk-in chambers, drive-in chambers
2. Integrated type and disassembling type
3. Design, construction, installation
4. Engineer on site service
5. 3 years warranty
♦Main Parameter for Controlled Humidity Temperature Controlled Walk in Cooling Chamber
| Name | for Controlled Humidity Temperature Controlled Walk in Cooling Chamber |
| Model | WTH-0015C |
| Internal dimension (mm) | 2500*2500*2500 D*W*H |
| Overall dimension (mm) | 4000*2550*2850 D*W*H |
| Temperature range | -70℃ ~ +150℃ |
| Humidity range | 10% ~ 95% RH |
| Temperature fluctuations | ± 2.0℃ |
| Humidity fluctuations | ± 5.0% RH |
| Heating rate | 1℃ / min |
| Cooling rate | 1 ℃ / min |
| Controller | Programmable color LCD touch screen controller PC Link, Ethernet port |
| Cooling system | Mechanical compression refrigeration system |
| Thermal insulation | Polyurethane foam |
| Noise | Less than 85 dBA |
| Power Supply | 400V 50HZ |
| Environmental conditional | 5℃～+40 ℃ ≤85% RH |
| Safety device | Humidifier dry-combustion protection; over-temperature protection;over-current protection; Refrigerant high-pressure protection; Water shortage protection,Earth leakage protection |
♦Main Details for Controlled Humidity Temperature Controlled Walk in Cooling Chamber
 |  |
| 1.Controller PID programmable color touch screen controller, network connection computer. Can edit 100 programs 100 segment. LIB also can preset program into the controller based on user testing requirements. The set system language is English for standard. | 2.Insulation 10cm thick polyurethane foam and insulation cotton; Better insulation performance, degradation resistance, environmental protection, noise reduction. |
 |  |

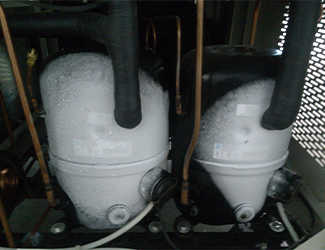

| 3.Temperature and Humidity Sensor PT-100 Class A sensor, real-time accurate detection and display of temperature changes at 0.001 degrees. A wet gauze and a real-time temperature, converted by temperature difference, showing real-time relative humidity. | 4.Cooling System After the liquid refrigerant absorbs the heat of the cooled object in the evaporator, it is vaporized into low-temperature and low-pressure steam, sucked by the compressor, compressed into high-pressure high-temperature steam, discharged into the condenser, and radiated to the cooling medium in the condenser, condensed into a high-pressure liquid, |
►Please Come and Contact Us.
