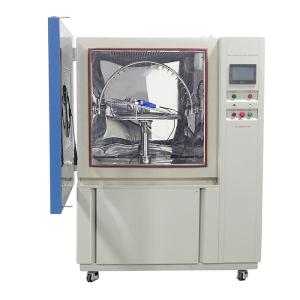

IEC60529 Water Spray Test Chamber For Exterior Lighting

Brand Name : LIB

Model Number : R-1200

Certification : CE,ROHS,

Place of Origin : China

MOQ : 1 Set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal

Supply Ability : 140 Sets/ Quarter

Delivery Time : 3-10 days

Packaging Details : Wooden cases standard export package

Type : IPX1 IPX2 IPX3 IPX4 Test

Standard : IEC 60529, ISO20653

Water System : Water Circulation System

Interior Material : SUS304 stainless steel

Application : Radar cone top, aerospace

Controller : Programmable controller

Contact Now

IEC60529 Test Chamber

IEC60529 test chamber for exterior lighting and signaling devices and automotive protective shell lamps, can provide realistic simulation of electronic products and Components during transport and use may be subject to various environmental and water spray sprinkler test.

In order to achieve the waterproof performance testing of various products

Main Parameters

Name	IEC60529 Test Chamber
Model	R-800	R-1200
Internal Dimensions (mm)	900900900	140014001400
Overall Dimensions (mm)	112014601660	160019502100
Oscillating Tube Radius	0 ~ ±180° (Adjustable)	600mm
Swing Angle of Oscillating Tube	φ0.4mm (IPX3 X4)
Turntable Rotation Speed	1r/min (Adjustable) (IPX3 X4)
Water Pressure Control	Flowmeter
Controller	Programmable color LCD touch screen controller Ethernet connection, PC Link
Build-in Water Tank(mm)	370375950
View Window Size(mm)	475*475
Water supply system	Water tank, booster pump, Automatic water supply, Water purification system
Power Supply	380V 50Hz
Maximum Noise	65 dBA
Environmental Conditional	5℃～+35 ℃ ≤85% RH
Standard	IEC 60529, ISO20653

Types of IEC60529 Test Chamber

LIB can provide all IP test equipment


IPX1X2 drop test equipment	IPX3X4 water test equipment

IPX5X6 test equipment (D 6.3 mm, D 12.5 mm nozzle);	IPX7X8 water immersion test equipment (with water temperature control and 10 atmospheric pressure adjustable);

Advantage

1. With water circulation system, save water

2. With water filtration system, remove impurities in water

3. Standard equipment, support customization

4. Support the establishment of IP laboratory (IPX1~IPX9K,dust Chamber)

Product Tags:

IEC60529 Water Spray Test Chamber

SUS304 Water Spray Test Chamber

IEC60529 environmental test chamber

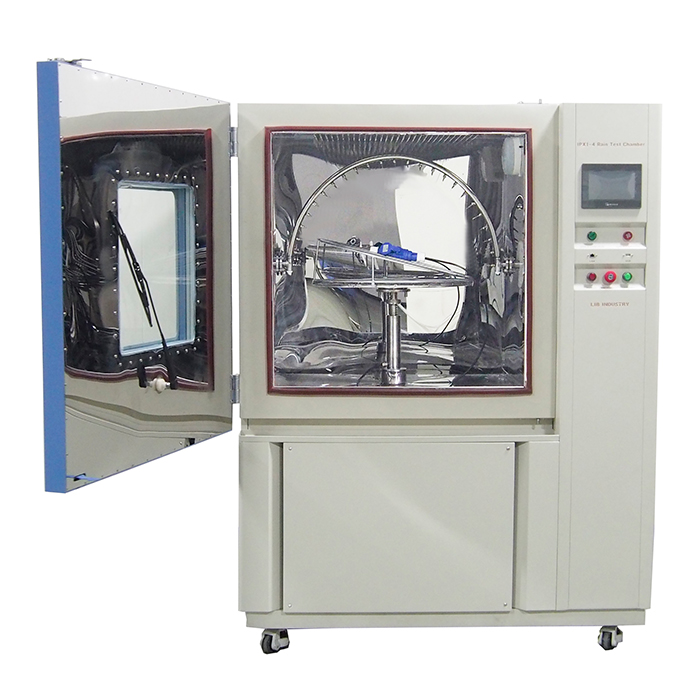

IEC60529 Water Spray Test Chamber For Exterior Lighting Images
