Description
50L 150 Degree Environmnetal Hot Cold Climate Chamber can simulate various meteorological conditions in nature.
Temperature Climate Chamber can simulate and monitor temperature and humidity in real time to meet the needs of manual testing and improve the performance of factory and manufacturer testing products.
Parameters
| Name | 50L 150 Degree Environmnetal Hot Cold Climate Chamber |
| Model | TH-50 |
| Internal dimension (mm) | 320*350*450 |
| Overall dimension (mm) | 800*1050*950 |
| Temperature range | -20℃ ～+150 ℃ |
| Low type | Ⅰ: -40℃ Ⅱ:-70℃ |
| Humidity range | 20% ~ 98% RH |
| Temperature fluctuations | ± 0.5 ℃ |
| Temperature deviation | ± 2.0 ℃ |
| Humidity deviation | ± 2.5% RH |
| Heating rate | 3 ℃ / min |
| Cooling rate | 1 ℃ / min |
| Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class |
| Temperature Resolution | ± 0.001 ℃ |
| Humidity sensor | Dry and wet bulb sensor |
| Power Supply | AC220V 50HZ |
| Environmental conditional | 5℃～+40 ℃ ≤85% RH |
Details
 |  |  |
| controller | Lan and USB | Refrigerating System |
Intelligent Control
1. Hot Climate Chamber can remotely realize the functions of equipment running status monitoring, video monitoring, data viewing, remote control, and other functions.
2. Data supervision: 7X24 hours of uninterrupted data recording and storage, and historical data can be viewed by day, week, and month.
3. Cold Climate Chamber, The air circulation and convection in the studio, the indoor temperature is uniform
Hot Tags: hot cold climate chamber, manufacturers, suppliers, factory, cost, price, used, rent, specification, for sale
Product Tags:
|
|

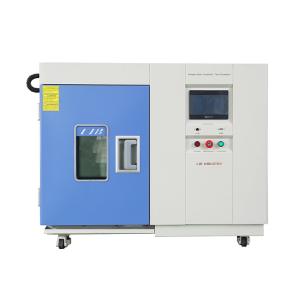

50L 150 Degree Benchtop Environmental Chamber Hot Cold Climate Chamber Images
|
